5 things about sewing machine attachments worth your time

What to take away

Shank type is the first sort key. Low, slant, high and super-high feet do not interchange, and forcing a wrong one into place bends the presser bar.
Measure the screw-hole height and check the shank angle before you sort anything. The answer takes under a minute.
Give every attachment a fixed compartment and a written position label. Loose drawers lose parts.
Run the five-step clearance test before an attachment touches fabric.
Keep one record sheet per trayposition, shank, markings, fit, condition and leaflet.

Identify the shank before you sort

Sorting by job before sorting by shank is how collections get damaged. A slant-shank foot will not seat on a low-shank machine. The pressure you apply trying to force it travels into the presser bar.

Work with the attachment off the machine, using a steel rule and calipers. Measure from the flat sole of the foot to the center of the screw hole. Then check the angle of the shank where it meets the foot.

Suppliers who publish shank measurements save you guesswork on new buys, as the small workshops in Catalog gaps: small workshops now supply sewing machine attachments do.

What you see

Low: Short flat shank, one thumb screw, foot sits level
Slant: Shank and screw hole tilted to the left, roughly 15 degrees
High: Taller narrow shank, screw hole well above the sole
Super-high: Tallest of the four, mostly industrial machines

Typical screw-hole height above the sole

Low: About 3/4 in (19 mm)
Slant: Low height, angled
High: About 1 in (25 mm)
Super-high: About 1-1/4 in (32 mm)

Those heights are typical ranges, not a published standard. Measure the presser bar on your own machine, then compare the attachments against each other. Singer built the Featherweight 221 around low shank feet, so a known one makes a reliable gauge: the Featherweight 221 and its compatible attachments.

Sort by shank, then by job

Storage starts with four groups, one per shank type. Inside each group, arrange by task: general feet, edge work, hems and binding, gathering, quilting, specialist.

Label the position, not the part. A compartment marked "low shank, hemmers, 4 mm and 6 mm" tells you at a glance when something is missing. A tray of unlabeled feet tells you nothing until you measure every piece again.

The fit rules behind those four groups are set out in Sewing machine attachments for people who want the details, worth reading before you buy a fifth box.

Write the housing rule on an index card

Memory is not a storage system. Tape a card inside the drawer with text short enough to read while your hands are full.

Tray 2: low shank only. Compartment 1, general feet. 2, hems. 3, binders in bags. 4, feet waiting for a shank test. Leaflets in the blue folder, not here. Nothing loose on the tray floor.

Print it rather than writing it in pencil. Institutions publish housing standards instead of relying on staff recall, and the National Archives keeps its storage and enclosure requirements among its preservation specifications and resources.

The five-step clearance test

Run this on every attachment before first use, with the machine unpowered and turned by hand.

Fit. Attach with the correct screw and confirm the shank seats fully.

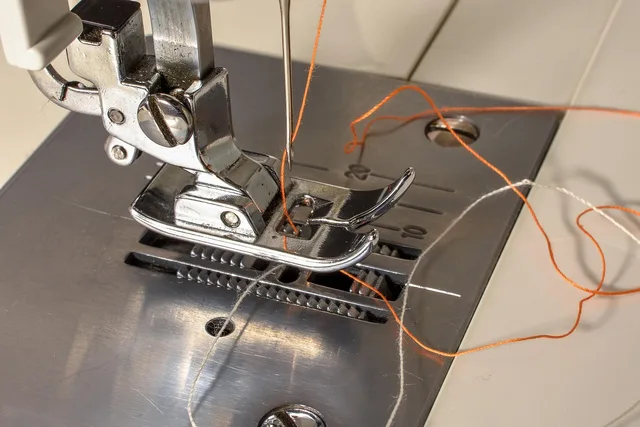

Needle position. Lower the needle by hand into the slot. It must enter centrally, without touching.
Full travel. Turn the handwheel through one complete cycle, watching the needle bar and the foot.
Full width. On a zigzag machine, repeat at maximum stitch width.
Free scrap. Sew a short line on scrap and inspect both sides before touching real work.

Resistance at any step ends the test. A bent needle is the cheap outcome. A damaged hook or a burred plate is the expensive one, and the failures in Powering up first is the beginner mistake that costs a vintage sewing machine most begin with a machine asked to do work nobody checked.

A test only compares if you run it the same way each time. Standards work makes the same case. Agreed methods deliver their benefit through consistent use, as NIST's overview of its standards work sets out. The full-width check is the step people drop first, and it is the one that finds the most needle strikes.

Records that keep the collection findable

Field	Example
Position	Tray 2, compartment 4
Shank	Low
Markings	Patent numbers transcribed exactly
Fits	Which machine, confirmed by test date
Condition	Sole flat, light surface rust on shank
Leaflet	Yes, filed under set 3

One sheet per tray. Fill the shank and fit lines after the clearance test, so the sheet records what you proved rather than what you assumed.

A tray with no sheet is a tray you will measure again next winter.

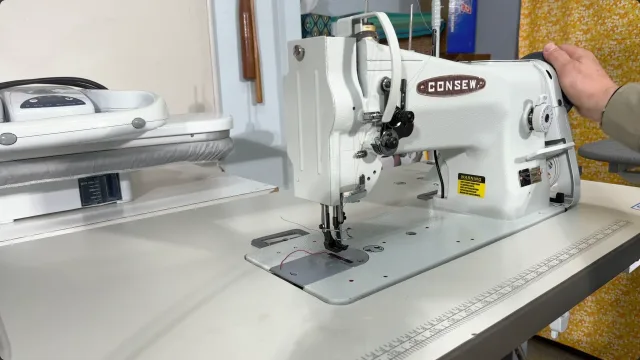

The bench holding those trays matters as much as the boxes. Why the work surface matters as much as the sewing machine attachments covers load, flatness and chemical resistance near the cleaners you will use.
